Fancy Outline Bullets

We improve upon the outline bullets presented in the previous post Managing code with Outlines.

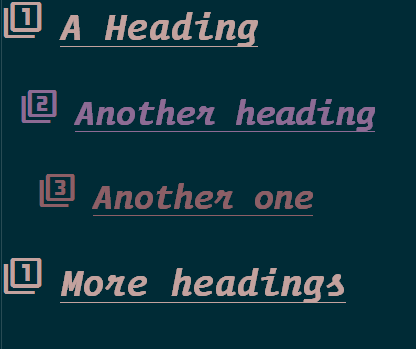

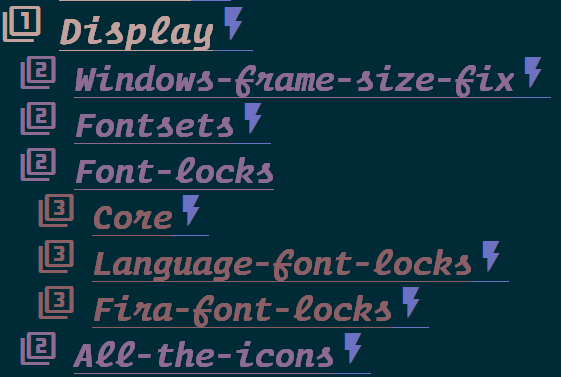

My Headings Editing my config
/img/outline-bullets-fancy.png /img/outline-bullets-config.png

This solution:

  1. Allows for face application to the bullet. The default faces outline-1/2/3...
  2. only apply to the text, not the bullet.
  3. Adds spaces for higher level bullets. So not every outline-level needs to
  4. have its text start at the same column.
  5. Works for any number of outline levels.
  6. Generalized - uses outline regexes, all that is required to add the bullets
  7. to a mode is adding to its hook.

(require 'dash)
(require 'outshine)
(require 's)

(defmacro with-face (STR &rest PROPS)
  "Return STR propertized with PROPS."
  `(propertize ,STR 'face (list ,@PROPS)))

(defun set-icon-fonts (CODE-FONT-ALIST)
  "Utility to associate many unicode points with specified fonts."
  (--each CODE-FONT-ALIST
    (-let (((font . codes) it))
      (--each codes
        (set-fontset-font t `(,it . ,it) font)))))

;; Requires all-the-icons fonts installed
(set-icon-fonts
 '(("material icons" #xe3d0 #xe3d1 #xe3d2 #xe3d4)))

(setq outline-bullets-bullet-list '("" "" "" ""))

(defun font-lock-display-updates (FONT-LOCK-ALIST)
  "Put text property for FONT-LOCK-ALIST for var-width replacements."
  (font-lock-add-keywords
   nil (--map (-let (((rgx uni-point) it))
                `(,rgx (0 (progn
                            (put-text-property
                             (match-beginning 1) (match-end 1)
                             'display
                             ,uni-point)
                            nil))))
              FONT-LOCK-ALIST)))

(defun outline-bullets-rgx-at-level (LEVEL)
  "Calculate regex or outline-bullets at LEVEL."
  (concat "\\(^"
          (-> LEVEL
              outshine-calc-outline-string-at-level
              s-trim-right)
          "\\) "))

(defun propertize-bullet (LEVEL BULLET)
  "Add LEVEL-dependent face to BULLET."
  (with-face BULLET
             (pcase LEVEL
               (0 '(:inherit outline-1 :underline nil))
               (1 '(:inherit outline-2 :underline nil))
               (2 '(:inherit outline-3 :underline nil))
               (3 '(:inherit outline-4 :underline nil))
               (_ nil))))

(defun add-outline-font-locks ()
  "Use with `add-hook' to enable outline-bullets-bullet-list for mode."
  (font-lock-display-updates
   (--map-indexed
    (list
     (outline-bullets-rgx-at-level (+ 1 it-index))
     (concat
      (s-repeat it-index " ")
      (propertize-bullet it-index it)))
    (-take 8 (-cycle outline-bullets-bullet-list)))))

(add-hook 'emacs-lisp-mode-hook 'add-outline-font-locks)
(add-hook 'hy-mode-hook 'add-outline-font-locks)
(add-hook 'python-mode-hook 'add-outline-font-locks)
